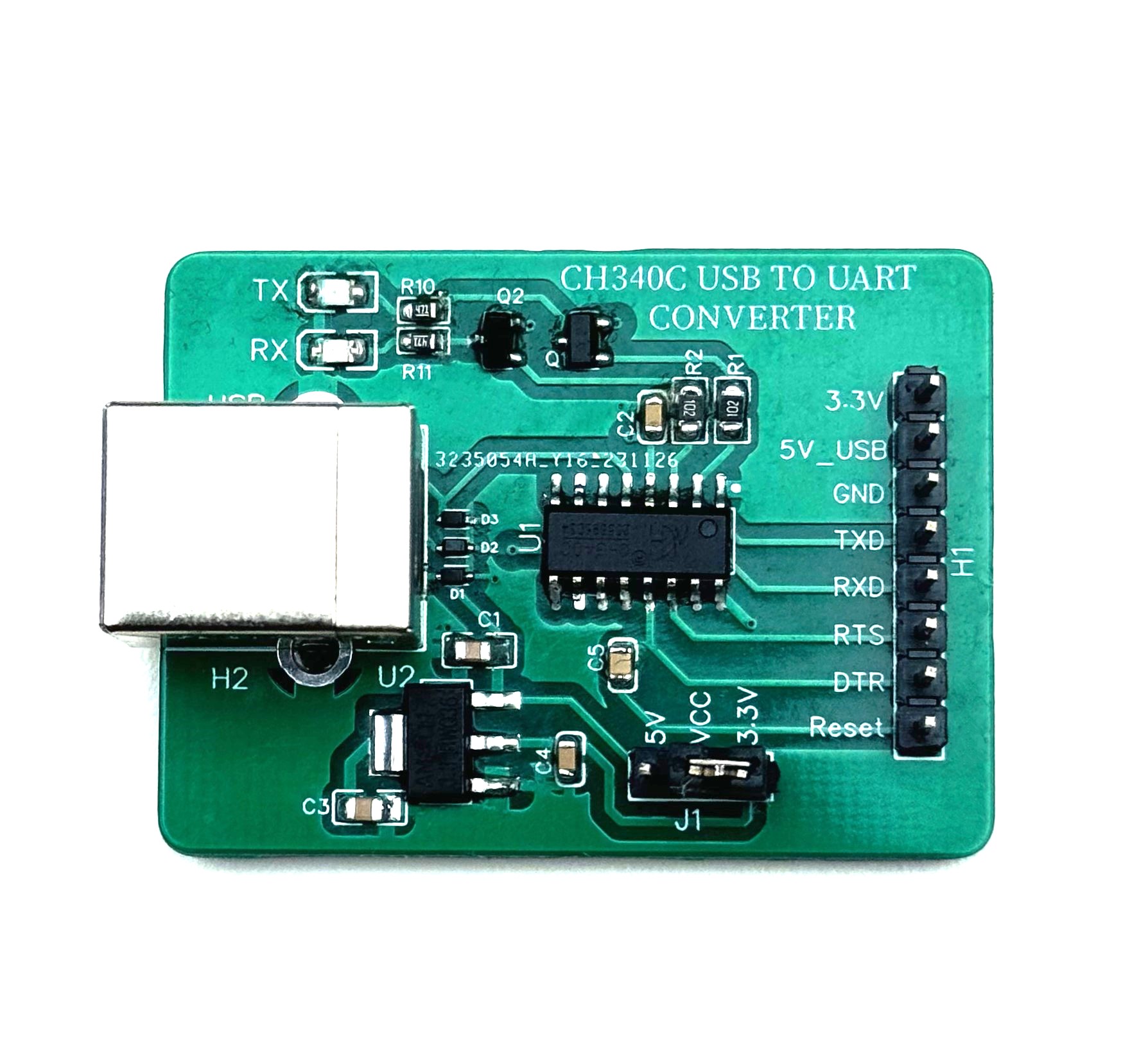

USB to TTL/UART Converter for Arduino
AU$20.00
Product Description:
The USB to UART Breakout is a versatile and user-friendly USB-to-Serial adapter built around the reliable CH340C chip. Designed with a convenient USB-B connector, this adapter not only simplifies your connections with a reversible plug but also delivers up to 1.5A of power, providing up to three times the power of previous USB generations.
This Serial Basic adapter is compatible with both 5V and 3.3V systems and is designed to auto-install on most operating systems without the need for additional drivers. It efficiently converts serial signals to USB, making it an essential tool for developers and hobbyists alike.
The pinout configuration of the Serial Basic mirrors the widely used Reset/DTR/RTS/RXD/TXD/GND/VCC 5V/3.3V setup, which is common across many FTDI-to-USB derivatives. This flexibility allows it to function as a general-purpose serial device, ideal for tasks such as debugging GPS modules or programming ESP devices with the appropriate external transistor circuitry.
The board features a rear jumper that lets you select the output voltage on the VCC pin. By default, it outputs 3.3V with corresponding signals, but you can easily switch to 5V output by adjusting the jumper, providing 5V signals when needed.
Common Applications:
ESP programming (with external transistor circuitry)
USB to TTL data conversion
Driver Downloads:
Rest assured, this product is fully tested and guaranteed to work 100%.
