ESP32/8266 Programmer/USB to UART converter for Arduino
AU$20.00
The ESP32/8266 Programmer and USB to UART Converter for Arduino is a versatile tool designed for both developers and hobbyists. Manufactured in Australia, this comprehensive kit includes an ESP32/ESP8266 Programmer and a USB to UART Converter, making it an indispensable component for any Arduino project. Its compact design and user-friendly interface allow users to connect their ESP32/ESP8266 boards to a computer and program them quickly and efficiently. Whether you are an experienced developer or just starting out, the ESP32/8266 Programmer and USB to UART Converter for Arduino is an essential addition to your toolkit.

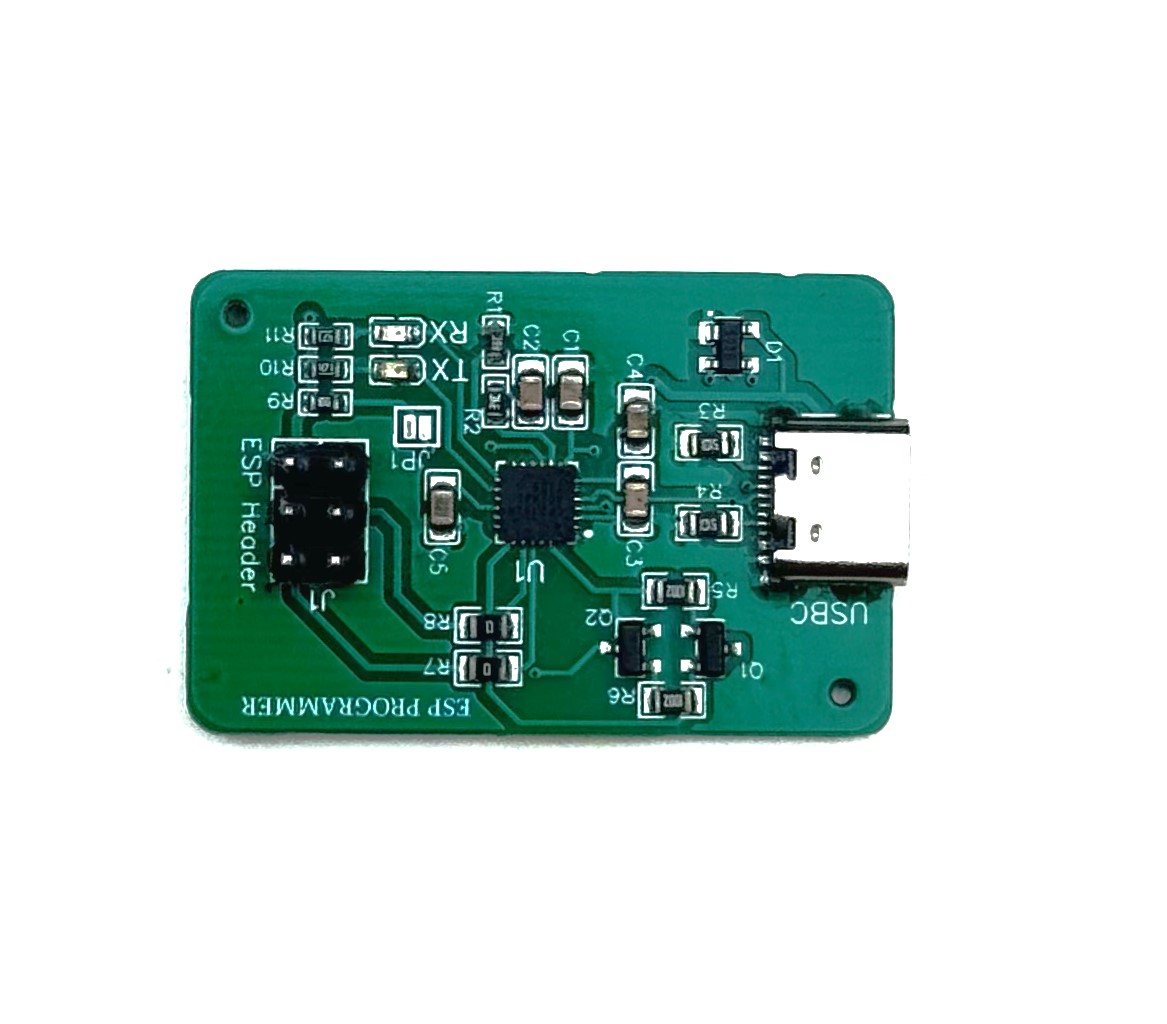

This programmer is built around the CP2102N chip, providing a 5V DC output, BOOT, and EN functionality. It can power ESP32/ESP8266 chips with a 3.3V output and read log data from the ESP32 chip. Featuring auto-programming capabilities, the device automatically resets after program uploads, eliminating the need for manual resetting or pressing boot buttons.
Specifically designed for programming ESP32/ESP8266 chips using the Arduino IDE, the programmer simplifies the upload process to a single click.

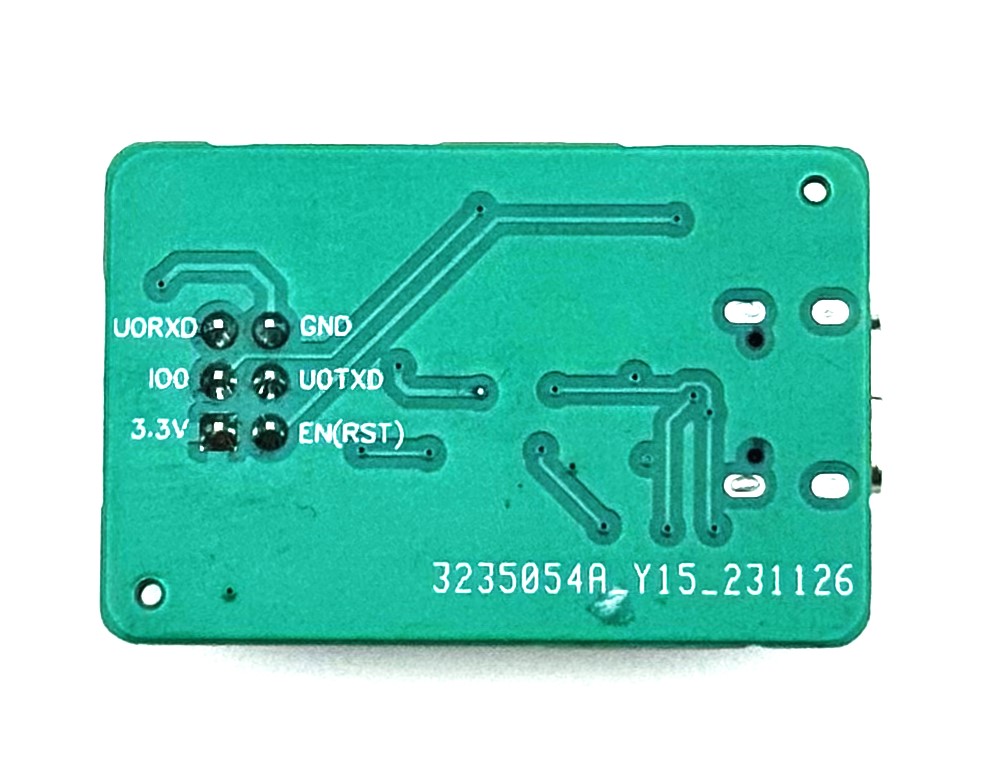

Pin connections include:
U0RXD: ESP32 U0RXD Pin / ESP8266 RXD0
GND: Common Ground
IO0: ESP32/ESP8266 GPIO0
U0TXD: ESP32 U0TXD Pin / ESP8266 TXD0
3.3V: 3.3V DC Output
EN (RST): ESP32 EN / ESP8266 RST
Common Applications
ESP programming with external transistor circuitry
USB to TTL data conversion
For drivers, please refer to the following links:
This product is fully tested and guaranteed to work 100%.
