Cortex Link A8F-M Smart Controller – ESP32, Wi-Fi, Ethernet, GSM, Home Assistant & Arduino IDE Support

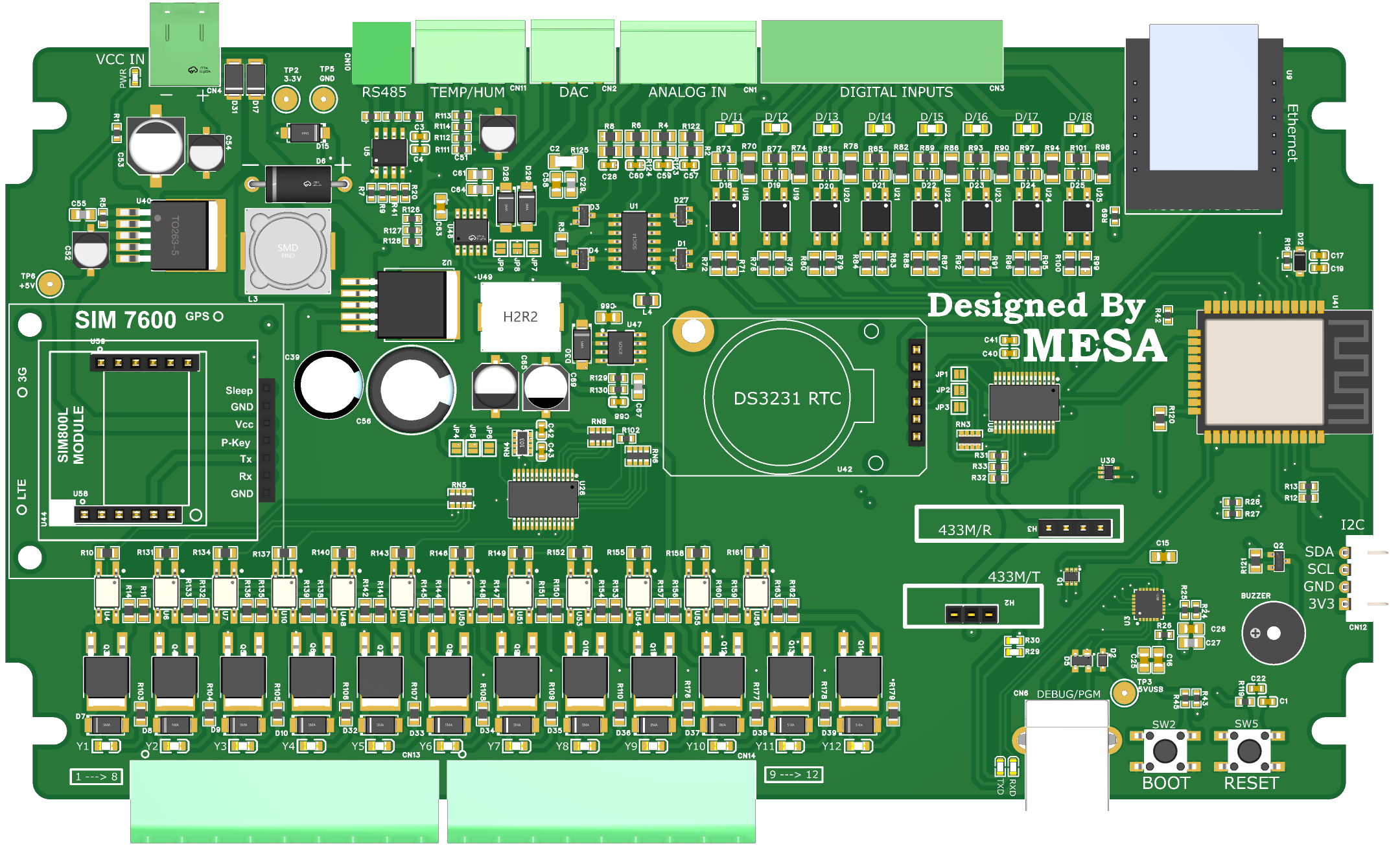

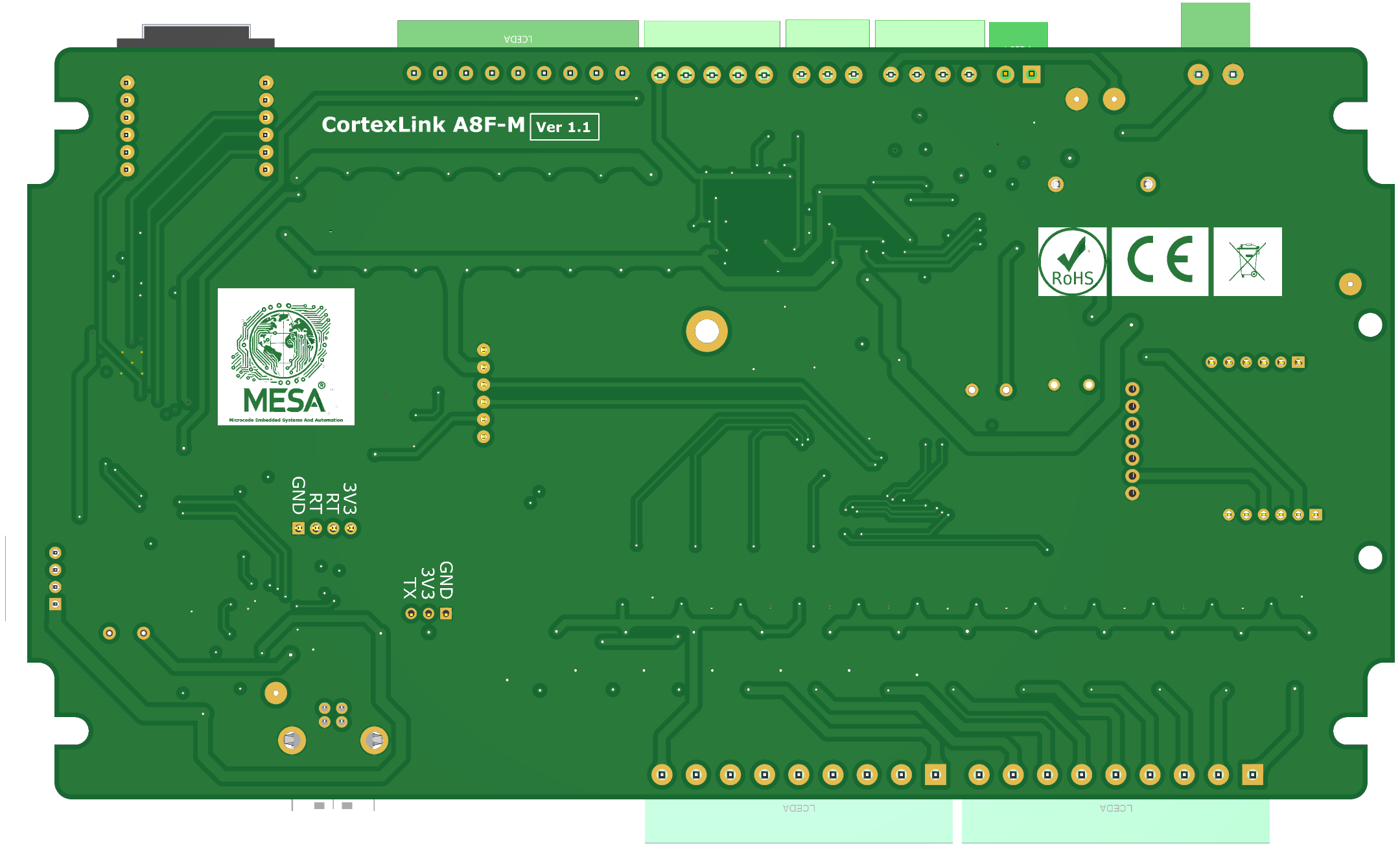

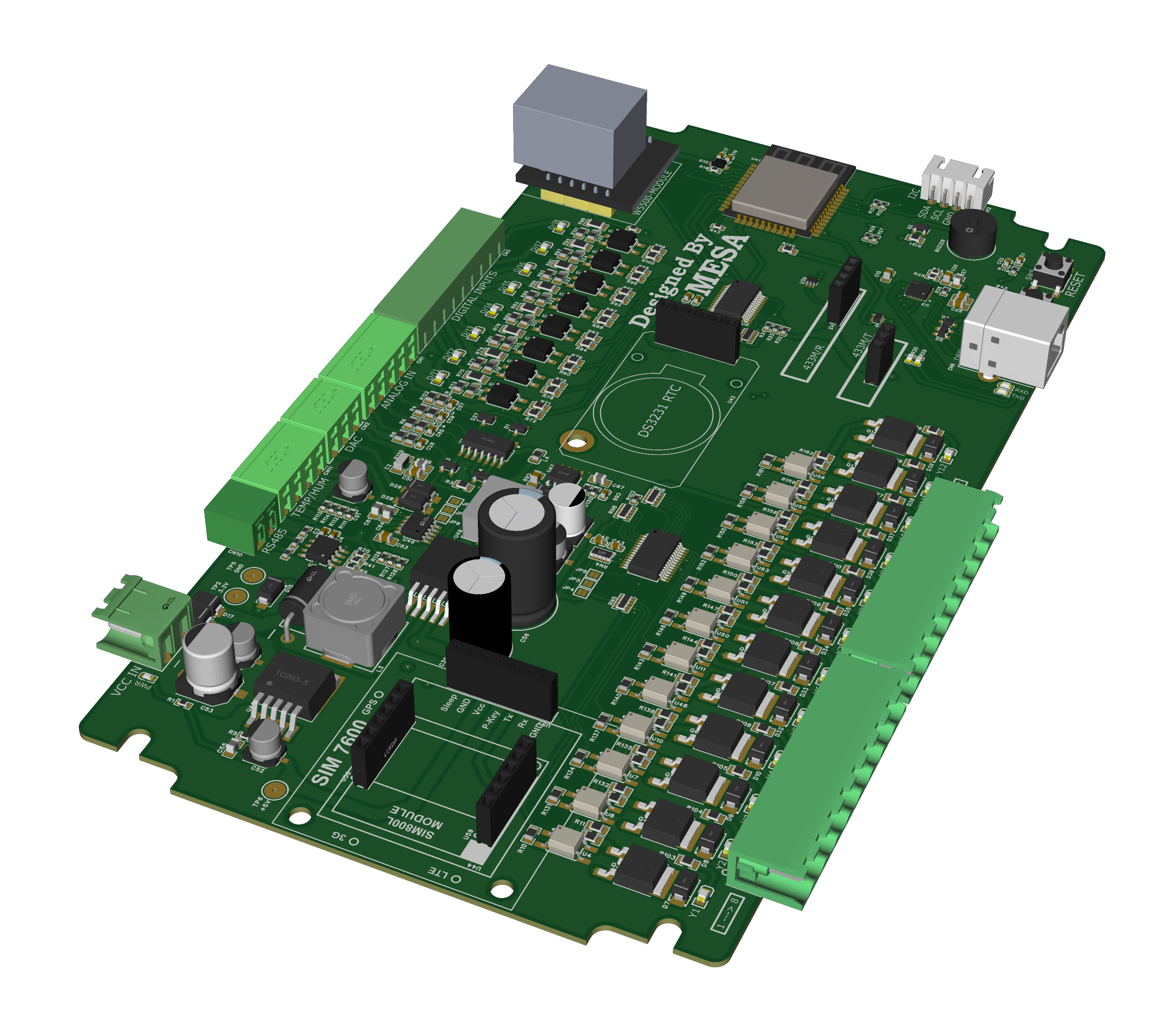

Product Description for Cortex Link A8F-M ESP32 MOSFET IO Board

The Cortex Link A8F-M ESP32 Board, designed by Microcode Embedded Systems and Automation (MESA), is engineered for seamless integration into smart home automation systems, industrial applications, and IoT projects. Powered by the ESP32 processor, it offers a versatile range of connectivity options and flexible input/output configurations, making it an ideal solution for controlling devices, collecting data, and developing custom automation solutions.

Product Customization:

This product can be fully customized to meet specific customer requirements. Whether it's adjusting the I/O configurations, modifying connectivity options, or enhancing compatibility with additional modules, the Cortex Link A8F-M can be tailored to suit your unique project needs. Contact MESA for customization options and pricing.

Availability:

Please note that this product is currently out of stock, but can be manufactured in any quantity upon request. For inquiries, bulk orders, or customization requests, contact MESA directly via email or through our website.

Technical Specifications:

• Microcontroller:

  • Chip: ESP32 dual-core processor

  • Architecture: 32-bit

  • Clock Speed: 240 MHz

  • Flash Memory: 8 MB

  • SRAM: 520 KB

• Connectivity Options:

  • Wi-Fi: 802.11 b/g/n (2.4 GHz)

  • Ethernet: RJ45 port for wired network connection (10/100 Mbps)

  • Bluetooth: BLE 4.0 and Bluetooth Classic

• Optional GSM (2G/4G): Support for external GSM module for cellular connectivity

Digital Outputs:

• 16 MOSFET Outputs

• Voltage Rating: 12/24V DC

• Current Rating: 500mA per channel

Digital Inputs:

• 8 optically isolated digital inputs

• Input Type: Dry N/O contacts

Analog Inputs:

• 4 analog input channels (Input Port 1&2: 4-20mA and input port 3&4: 0-5VDC)

• 12-bit ADC for sensor input

• I2C Interface: Integrated I2C interface for connecting external sensors and modules

• GPIO Pins: Multiple general-purpose I/O pins for various custom configurations

  Power Supply: 9V-12V DC

• Logic Voltage: 5V DC

• MOSFET Power: 12V/24V DC input

• Power Consumption: 1W (idle), 10W (under load)

  Antenna:

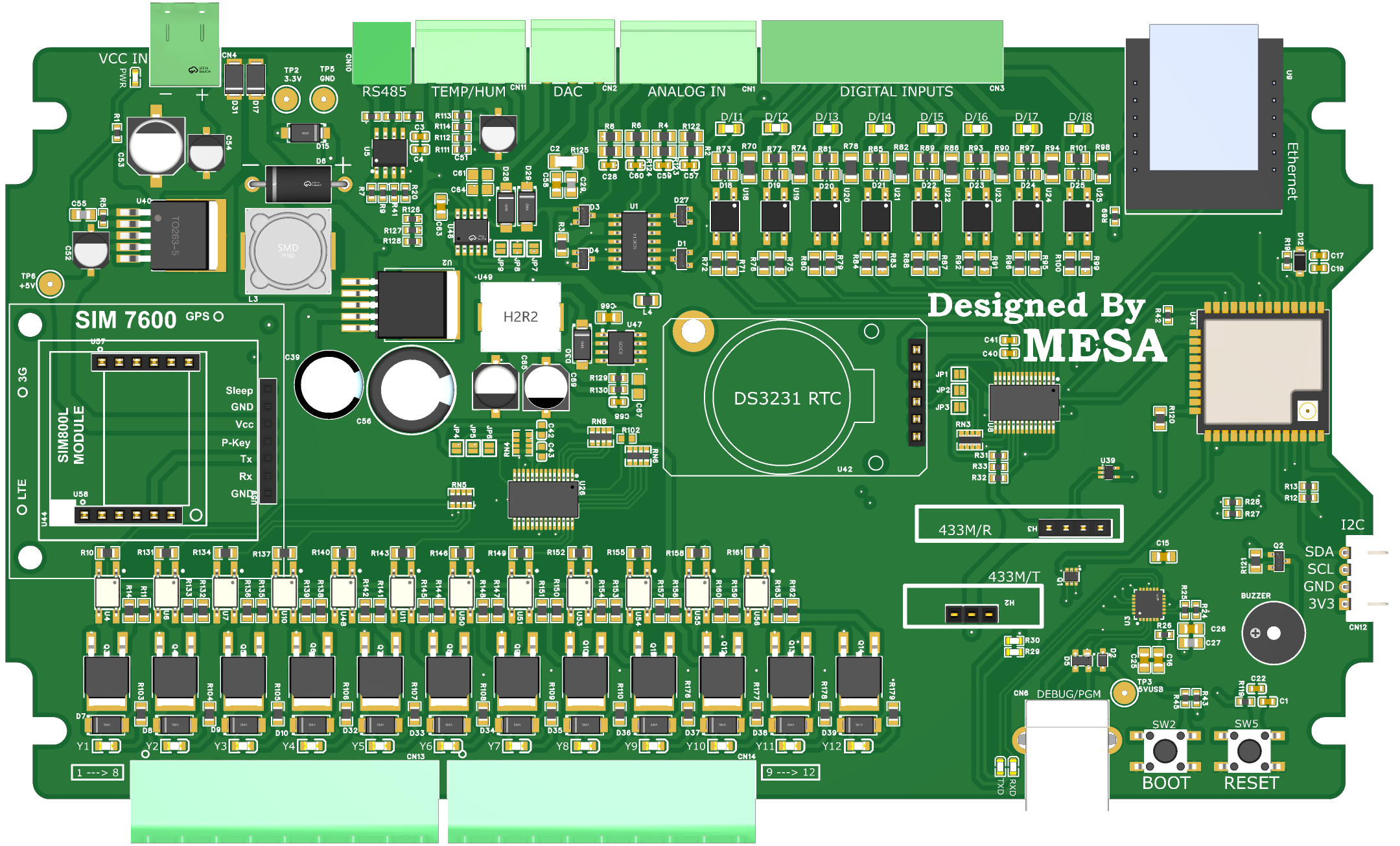

  • Wi-Fi Antenna: Internal and External Antenna Port (for extended range)

• Expansion Slots:

  • GSM Module: 2G/4G compatible

  • Antenna Port: External antenna port for GSM or Wi-Fi connectivity enhancement

• Compatibility:

  • Programming Environments:

    • Compatible with Arduino IDE, ESPHome, ESP-IDF, and PlatformIO

    • Supports MQTT, Modbus RTU, HTTP, and other communication

    • Home Assistant

    • MicroPython

    • Over-the-air (OTA) firmware update support

  • Smart Home Platforms:

    • Full integration with Home Assistant and ESPHome for easy automation and control

  • API/Protocols:

    • MQTT

    • HTTP/HTTPS

    • WebSocket

• Operating Temperature:

  • Range: -40°C to +85°C

• Dimensions:

  • Board Size: 200mm x 110mm x 45mm (L x W x H)

• Certifications:

  • CE Certified: Compliant with European safety standards

  • RoHS Compliant: Free from hazardous substances

• Operating Temperature:

  • Range: -40°C to 85°C

Features:

• 12-Channel MOSFET Outputs: Control relays and other equipment up to 12 independent devices with a load capacity of 12/24VDC 500mA per channel.

• 8 Digital Inputs: Monitor external switches, sensors, or other digital devices for system status and automation logic

• Analog Input Capability: Supports 4 Channel 12bit resolution analog inputs (2 x 4 - 20mA Inputs and 2 x DC 0 - 5V) for sensor data collection

• 2 analog outputs (DAC) 0-10V

• 2 x 1-Wire GPIOs for connecting temperature and other sensors

• Multiple Communication Protocols: RS485/Modbus RTU, HTTP, MQTT, TCP/IP, and WebSocket for cloud integration and industrial

• RF 433MHz/315MHz Transmitter and Receiver Interface:

• Wide Software Compatibility: Works with Arduino IDE, PlatformIO, ESPHome, and other development environments

• Over-The-Air (OTA) Updates: Wireless firmware updates and configuration changes

• Wi-Fi & Ethernet Connectivity: Flexible network options to suit various setups and environments.

• GSM Module Support: Optional 2G/4G GSM module for remote monitoring and control in areas with limited internet access.

• Antenna Port: Allows connection to an external antenna to improve signal range.

• ESPhome & Home Assistant Integration: Easily integrate with home automation platforms for seamless control and monitoring.

• Arduino IDE & PlatformIO: Support for development with Arduino IDE and PlatformIO, making customization straightforward.

Applications:

• Smart Home Automation: Control and automate lighting, HVAC systems, or appliances.

• Industrial Automation: Manage and monitor motors, sensors, and devices in industrial settings.

• Remote Monitoring & IoT: Build custom IoT solutions for remote environments using GSM or Wi-Fi for data collection and system control.

Package Includes:

• 1 x Cortex Link A8F-M ESP32 Board

• 1 x USB Cable

• User Manual (digital download)

The Cortex Link A8F-M ESP32 Board is the perfect solution for developers and enthusiasts seeking to create robust automation systems for residential, industrial, or IoT projects. This product is tailored to meet your needs with customizable features and flexible configurations. Contact MESA via email or our website for customization inquiries and bulk orders.
